IF KIARO EASY spodní klopna s tlumením sada - / šedá 9007
-
> S RaktáriCsak a központi raktáron
- Vásárlás
- Jel
- Italiana Ferramenta
- Csoportkód
- 10100302
- Egység (ME)
- db
- Kiszerelés
- 1 db
- Csomagolás
- 20 db

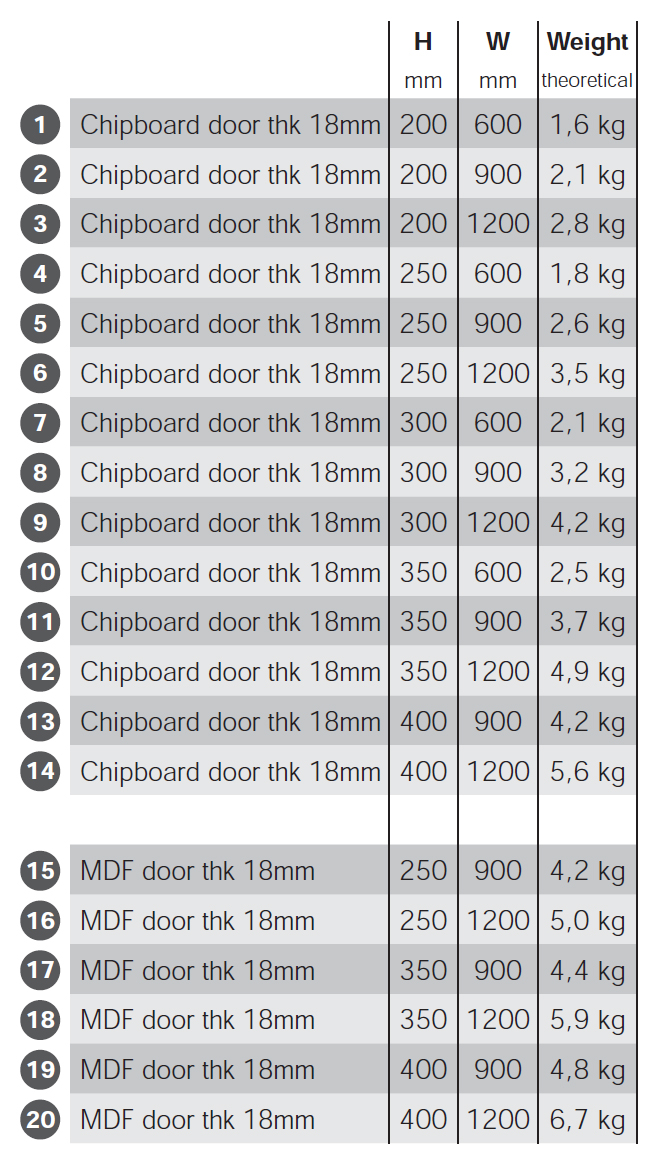

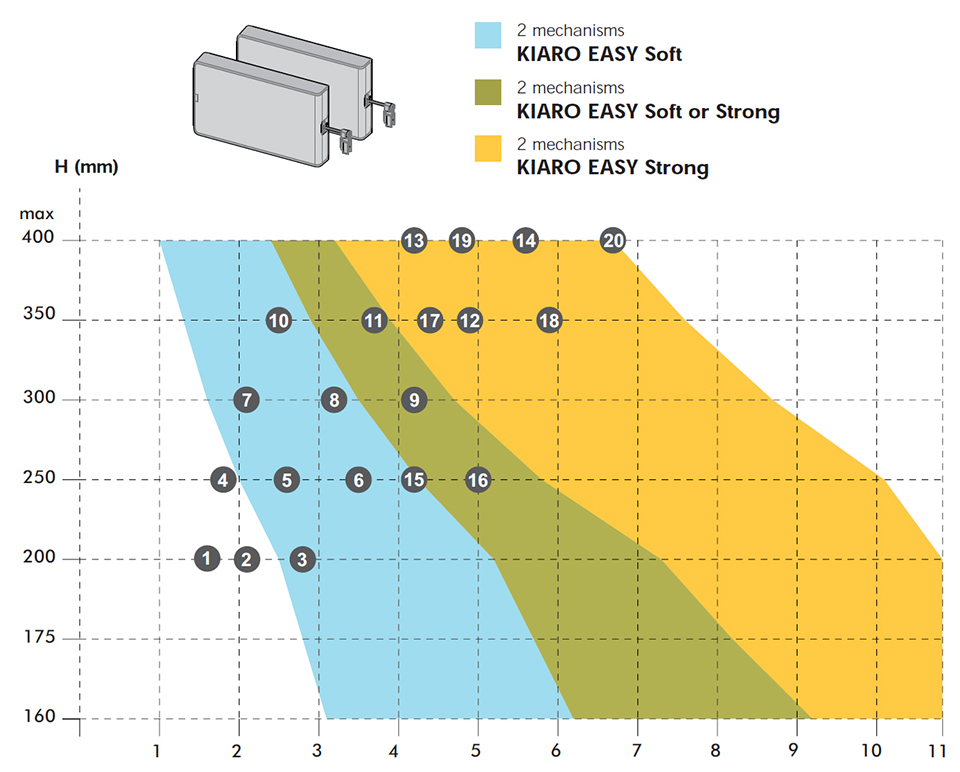

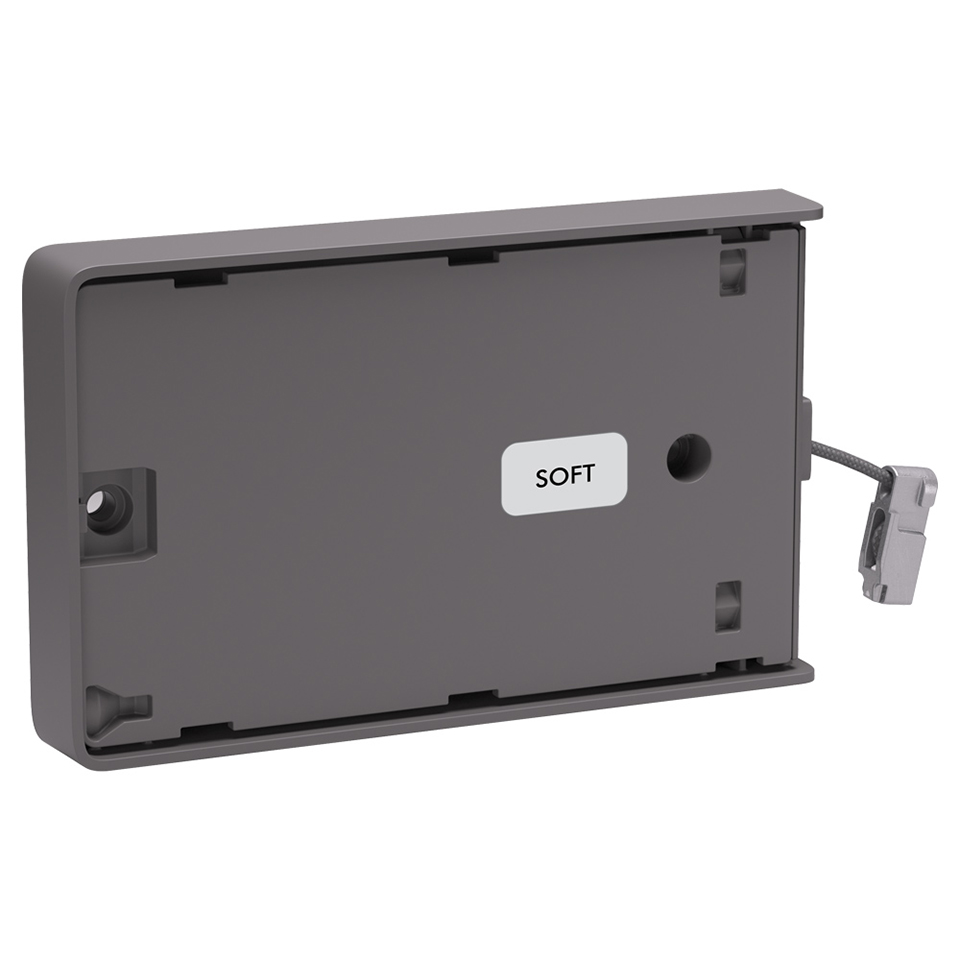

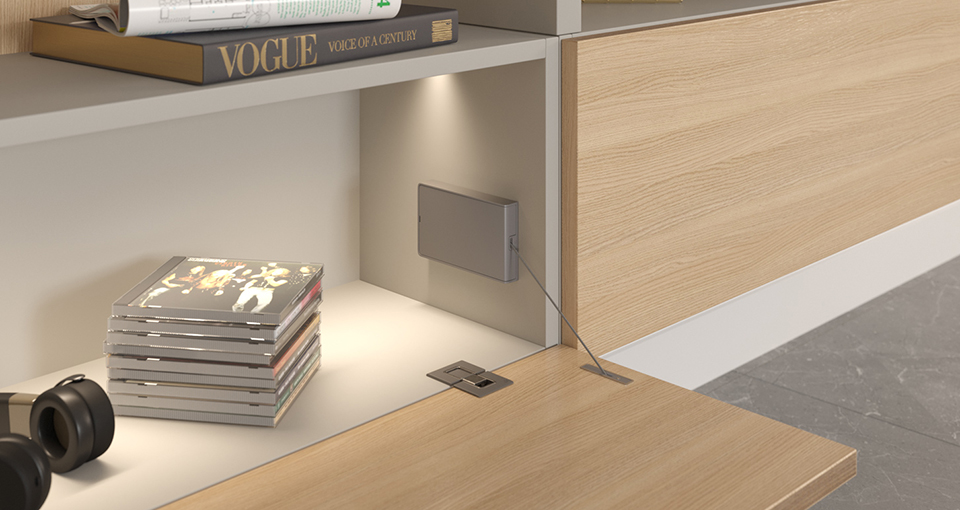

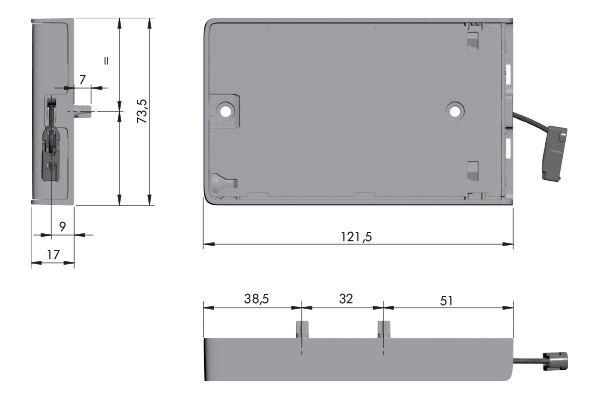

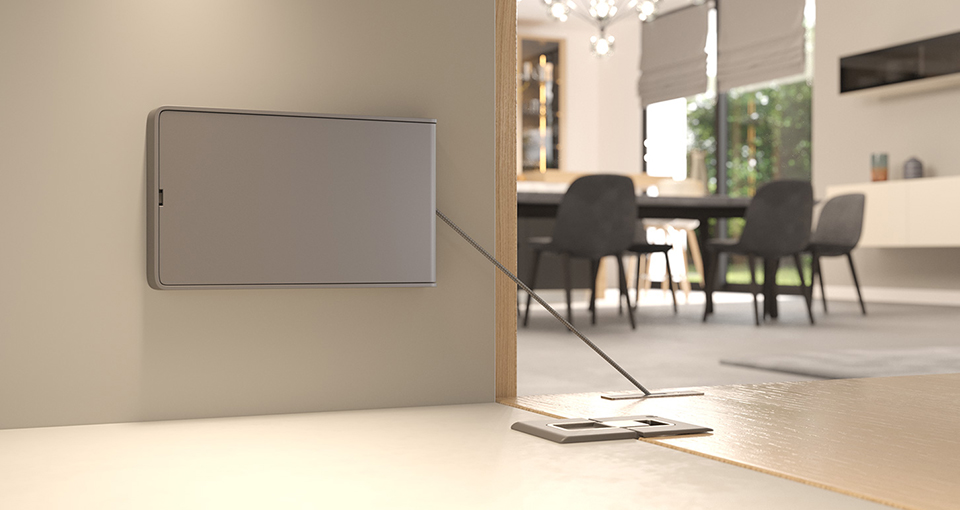

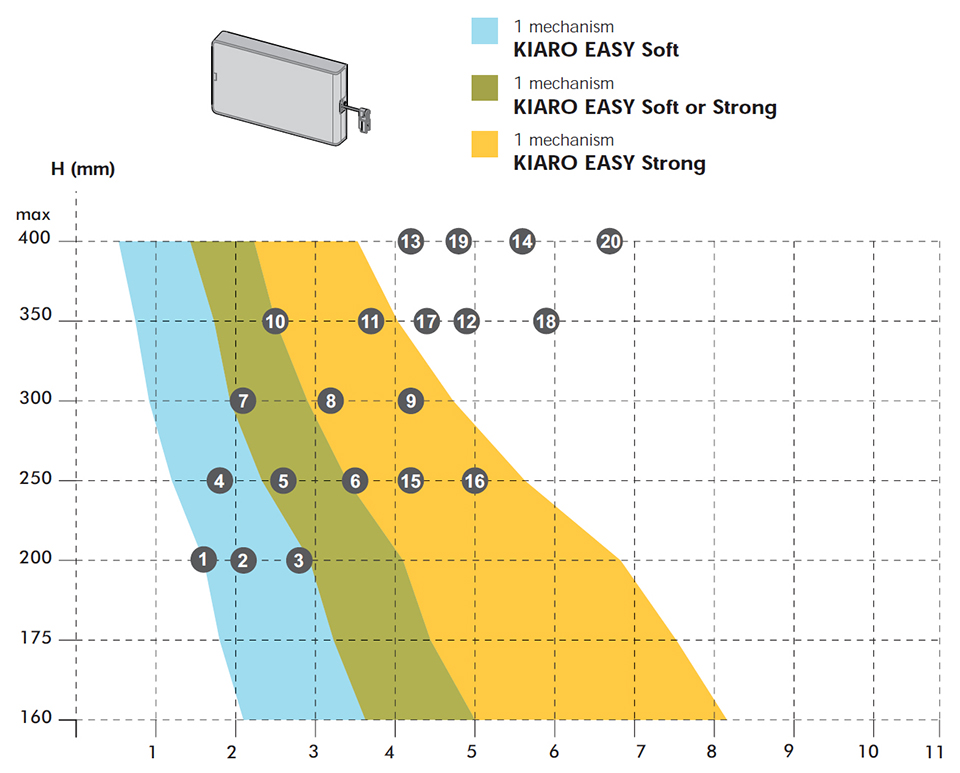

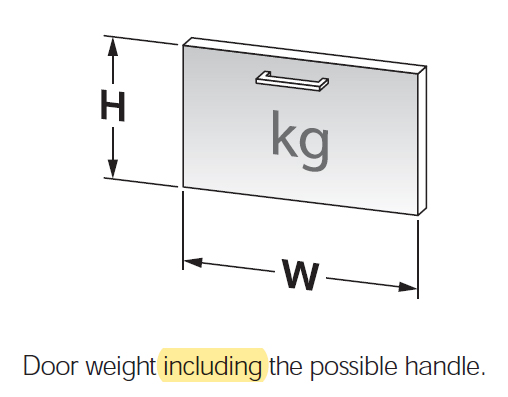

Kiaro Easy is an elegant opening system for hinged doors, which is characterized by minimalist shapes and remarkably smooth movement. It is easily installed on the side panel and secures the door opening with a thin but extremely strong Dyneema cable. The result is a compact and proportionally balanced solution for smaller doors - minimum clear body height from 130mm, minimum clear body depth from 160mm, door weight from 1.6kg to 6.7kg (depending on the width/height of the body). You can choose the color gray R9007, anthracite or white - all the components of the set are always color-coordinated. Damping dynamics (force setting) when opening can be easily adjusted using the screw on the body. The standard opening angle of 90° can be easily adjusted with an Allen key in the range of -13° (up) to +7° (down). Setting the opening angle must be done before setting the force.

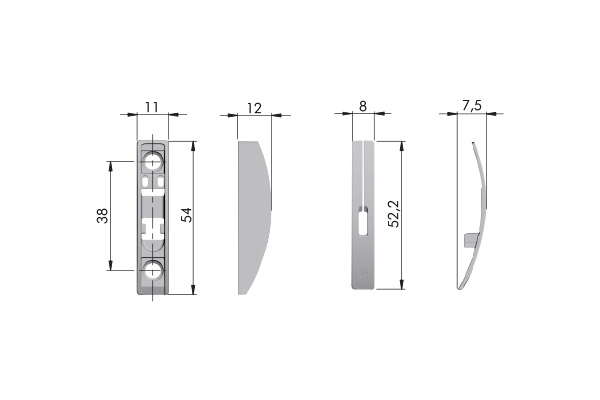

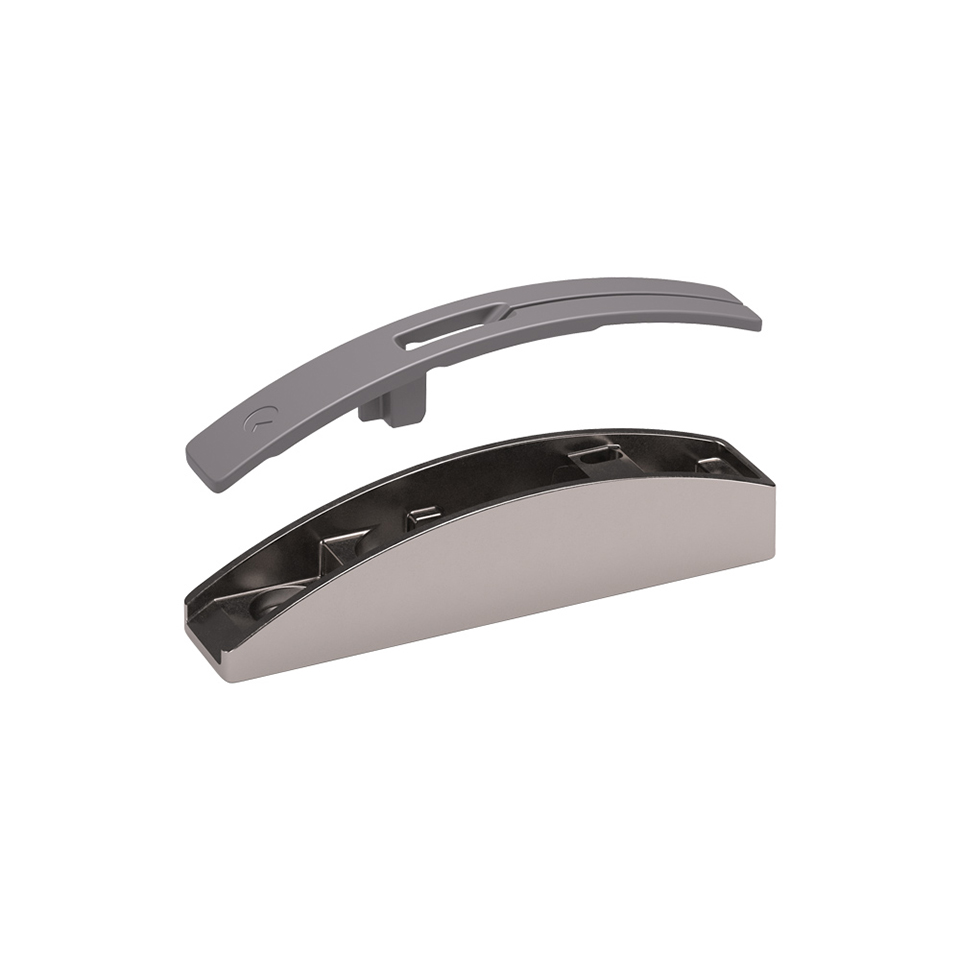

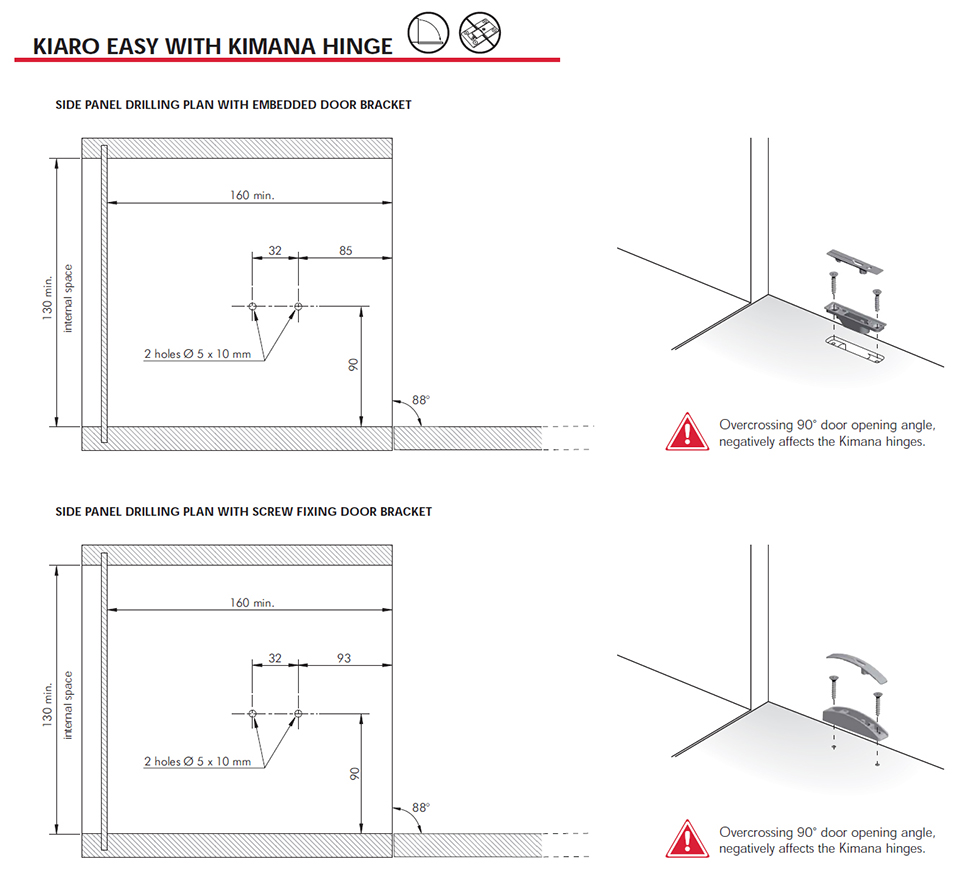

The package also includes a surface-mounted door bracket (no milling required) and a milled bracket. For narrow aluminum frames, it is possible to use a milled attachment with an adapter for aluminum frames.
Kiaro Easy must be supplemented with springless hinges, we recommend using KIMANA hinges.
Kapcsolódó dokumentumok
Szerelési útmutatóParaméterek
| Paraméter | Érték |
|---|---|
| Front típusa | Fa,keskeny alu keret |
| Kivitel | Csillapított |
| Korpusz magassága (mm) | 130 - 400 |
| Szín | Szürke |
