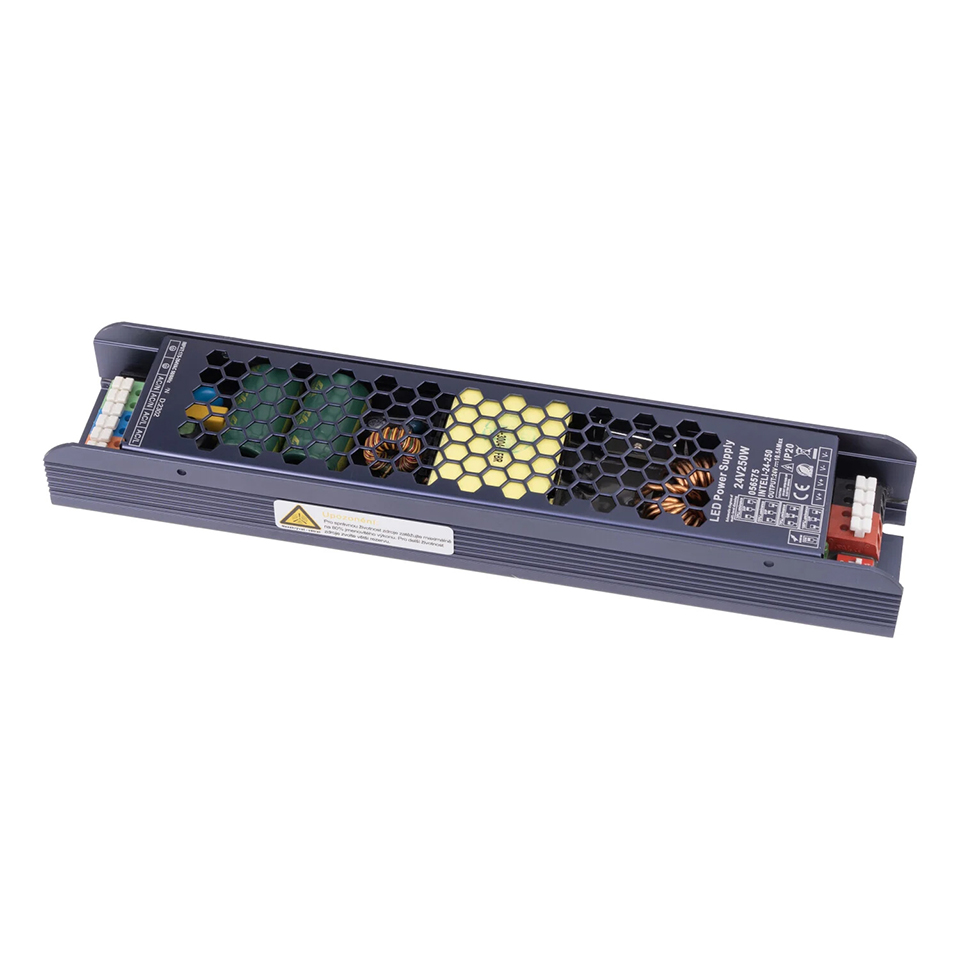

TL-tápegység LED hez 24V 250W IP20

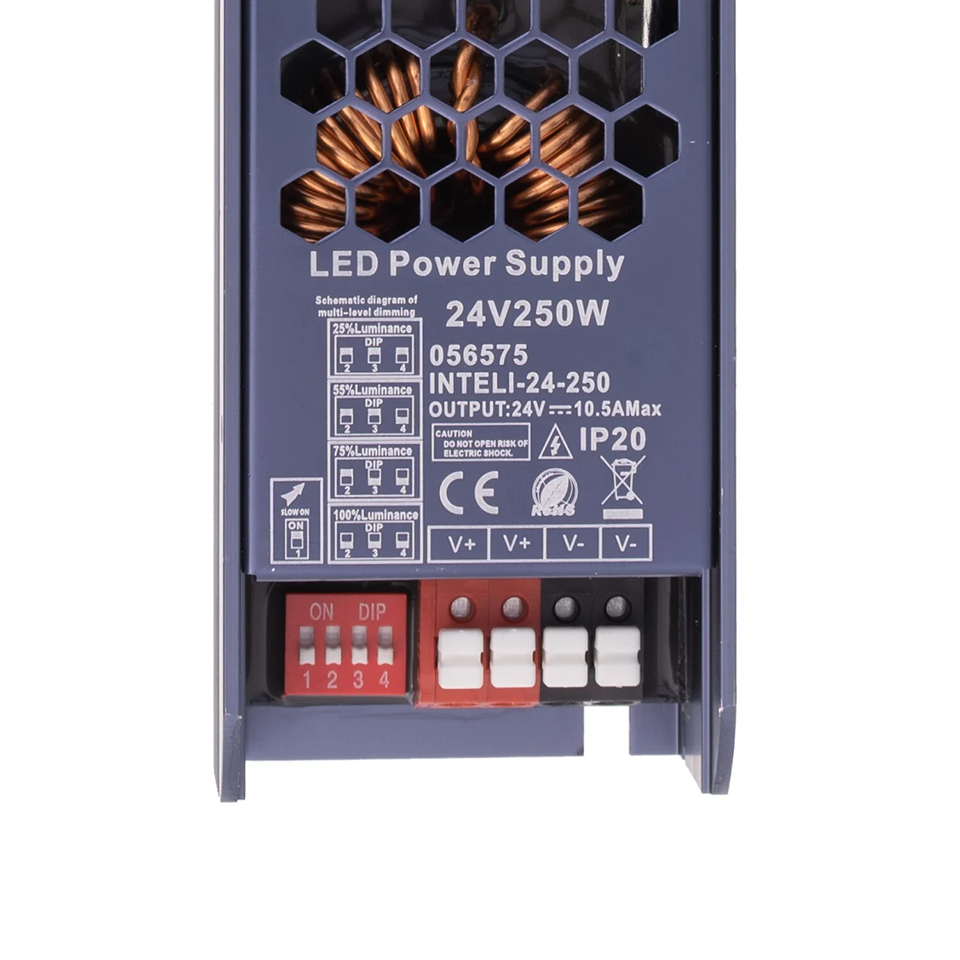

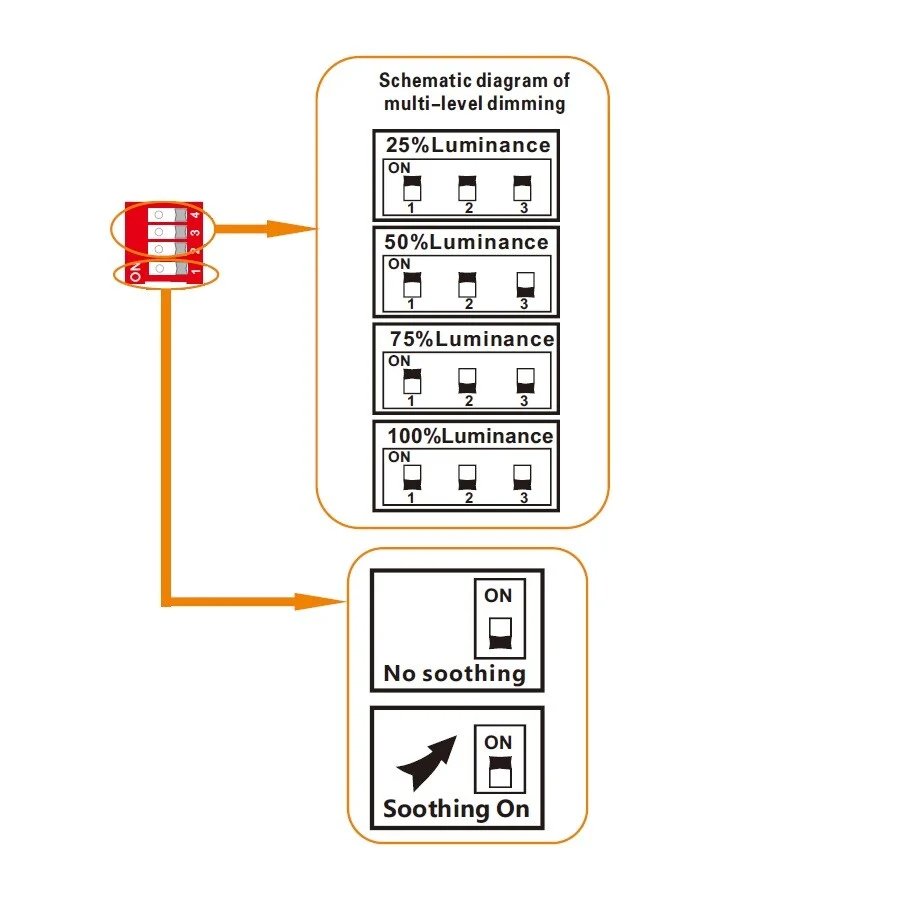

Indoor electronic switching source for LED series INTELI in IP20 protection, which is suitable for LED lighting such as LED strips, LED bulbs and other 24V DC LED lighting. Compared to classic sources, the INTELI series has the following unique features that can be set at the output of the source: the possibility of a gradual onset of light, the possibility of setting the output intensity of lighting in the values of 25%, 50%, 75% and 100% (for the CC, EFI, COB series of LED strips and in general, the function of specially built LED strips is not full-fledged). These properties are set at the output terminal block by DIP switches on the power source. When using these properties, it is necessary that the lighting connected to the sources is dimmable. For example, low-voltage LED strips are mostly dimmable, but not all low-voltage LED bulbs have to be dimmable. If immiscible products are used, the source may be damaged. The INTELI 24V 250W LED source is equipped with: a thermal fuse, a short circuit fuse (it is fully functional again after removing the short circuit), an overload fuse. * Warning! Max. permanent recommended load is with min. A 20% reserve for normal use, for installation in commercial premises with a period of use of 8 or more hours a day continuously, is the recommended permanent load due to the efficiency of switching sources with min. 30% reserve to preserve the longest life of the resource.
10 nap
